Benefits
- Easy to maintain construction
- Trouble free operation even in most demanding applications like abrasive, solids containing fluids
- Increased gas noise attenuation with Neles Q2-trim as option
- Low emissions according to ISO 15848

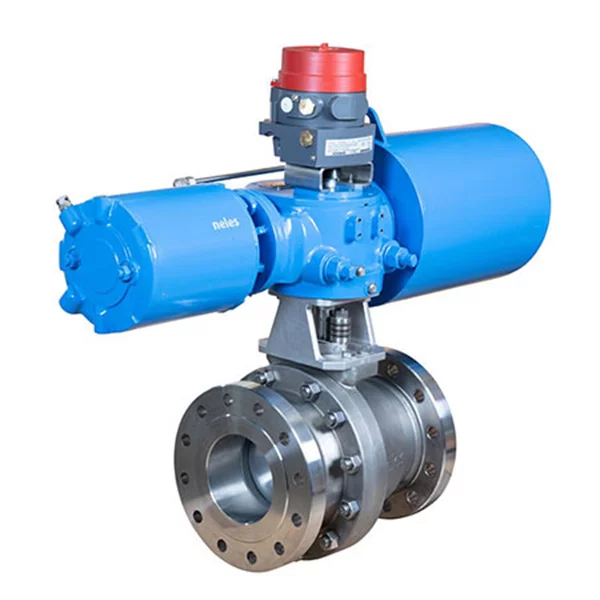

Neles™ modular trunnion mounted ball valve, series X
The Neles series X modular ball valve features a sturdy stem-to-ball connection in its trunnion-mounted models. Application-specific seat selection ensures that the valves can maintain a tight seal for extended periods. The valves can also be equipped with Neles Q-trim™ anti-cavitation and noise-reducing trim technology, which outperforms other ball control valves. The series meets the latest industry standards for safety and emissions.
Features
- 2-piece off-center split body, solid circular body joint gaskets
- Anti-blowout stem
- Robust stem to ball connection both in trunnion and seat supported ball models
- Application based seat selection options, metal-to-metal and soft seats
- Neles Q-trim technology for control applications, anti-cavitation and noise attenuation
- Latest Neles Q2-trim™ option available for gas applications
- Low emissions according to ISO 15848
- Fire safe certified according to API 607
- SIL 3 certified
- High Cv, including noise attenuation trims, which are designed self-flushing
- High, long lasting tightness
- Part modularity, reduced parts inventory for servicing
- Wide material selection for application specific needs
Specifications
|
Construction
|
Flanged, trunnion mounted, full bore ball valve
|
|
Size range
|
DN 50 – 600 / NPS 2” – 24” (trunnion mounted, full bore)
|
|
Face to face
|
ASME B16.10
|
|
Pressure ratings
|
EN PN 10 – 40, ASME 150 – 300
|
|
Temperature range
|
-50 °C … +600 °C / -60 °F … +1110 °F
|
