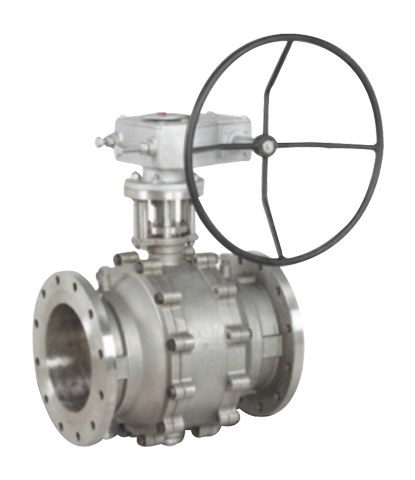

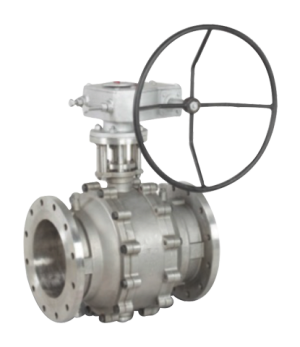

Cast Trunnion Mounted Ball Value

Categories: ,

Application

  • Isolation

Features

  • Full Bore, Reduce Bore Blow Out Proof Stem Low Torque, Antistatic Device Spring Loaded Seat, Stem Extension Locking Device, Double Block & Bleed, Drain & Vent,Self Relieving Seat / Double Piston Seat, Corrosion Resistant Low Friction Bearing, Emergency Sealant Injection Trunnion Mounted Design Stem Fire Safe Test Requirement as per API 607 & API 6FA
  • Ansi Class / Rating: 150#, 300#, 600#, 900#
  • Design Standard: API 6D, BS EN ISO 17292 , ASME B16.34,
  • Testing Standard: API 6D, API 607, API 6FA
  • F to F Standard: API6D, ASME B16.10
  • End Connection Standard: ASME B16.5, ASME B16.47
  • Ends: Flanged End, Butt Weld End, Ring Type Joint
  • Operation: Mannual with Gear, Pneumatic, Electric, Gas Over Oil, Gas Powered, Hydraulically Operated etc

Size

  • 50 mm to 1200 mm

Materials

  • Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20, LCB, LCC etc
  • Seat : RPTFE, GFT, CFT, Viton, Peek, Devlon etc
